TC Series Vintage Boost Preamps – TC1-6

Our oldest model boost preamps are ideal for guitar

List Price:

$40.00$60.00

 how to buy

SKU: Boost Preamp Category:
SKU: Boost Preamp Category:

The TC series are our original preamps known as “The Chip”. The TC3 is especially popular. They are hand-made with discrete electronic components for very low noise, outstanding distortion characteristics when overdriven, and very long battery life. They are rugged, reliable and easy to install. In most cases do not require modifications to the instrument. The different versions provide different gain levels and area available as single or dual channel.
The TC series are vintage designs that can be used in simple or complex ways. They include a boost signal that can be used by professional guitar technicians to further increase the output gain or to shape the frequency response for bass, mid, or treble boost. Because they rely on electrical current feedback for amplification, the tone is very well suited for high-output guitar setups. The TC series delivers very satisfying frequency-phase shift and asymmetric tube-like distortion when overdriven.
Like all of our electronics modules, the TC preamps are internally shielded to reject electromagnetic noise and include internal filters to block AM and FM radio on the inputs. Bartolini set the standard of fully sealing the sensitive electronics. We use professional double tin plated pure copper wire with durable semi-rigid insulation. This ensures the 4” pre-stripped wires don’t flop around in the cavity and the wires don’t cut through the insulation over time.
All TC preamps can be used in the un-boosted mode to provide equal amplification of all audio frequencies and very simple installation. The boosted modes allow tonal changes ranging from simple treble boost to a midrange spectrum shaping specifically designed to overdrive amplifiers to their best distortion sounds.

Ordering Details

Model Description UPC Price
TC1 TC Boost Preamp, Single Channel, Low Noise, 8X (18dB) Gain 682384502631 $40
TC2 TC Boost Preamp, Dual Channel, Low Noise, 8X (18dB) Gain 682384502648 $60
TC3 TC Boost Preamp, Single Channel, Low Noise, 4X (12dB) Gain 682384502655 $40
TC4 TC Boost Preamp, Dual Channel, Low Noise, 4X (12dB) Gain 682384502662 $60
TC5 TC Boost Preamp, Single Channel, Low Noise, 2X (6dB) Gain 682384502679 $40
TC6 TC Boost Preamp, Dual Channel, Low Noise, 2X (6dB) Gain 682384502686 $60

Ordering Details

Model UPC Price
TC1 682384502631 $40
TC Boost Preamp, Single Channel, Low Noise, 8X (18dB) Gain
TC2 682384502648 $60
TC Boost Preamp, Dual Channel, Low Noise, 8X (18dB) Gain
TC3 682384502655 $40
TC Boost Preamp, Single Channel, Low Noise, 4X (12dB) Gain
TC4 682384502662 $60
TC Boost Preamp, Dual Channel, Low Noise, 4X (12dB) Gain
TC5 682384502679 $40
TC Boost Preamp, Single Channel, Low Noise, 2X (6dB) Gain
TC6 682384502686 $60
TC Boost Preamp, Dual Channel, Low Noise, 2X (6dB) Gain

Boost Preamp Technical Details

Module Size:
1.05" [26.7mm] Long,
0.79" [20.1mm] Wide,
0.43" [10.9mm] Thick
Operating Voltage:
9V
Output Impedance:
3.6KΩ
Boost:
Additional boost can be added by an experienced guitar tech. See the wiring diagram for more info.

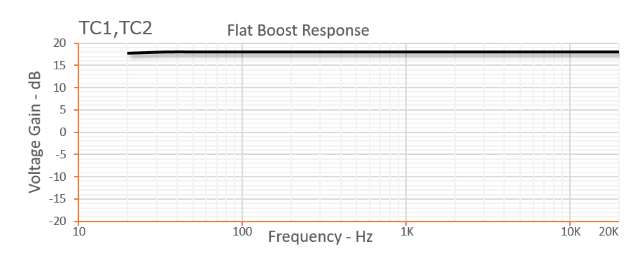

TC1 & TC2

  • 18dB (8x) Gain
  • Input Impedance: 300KΩ

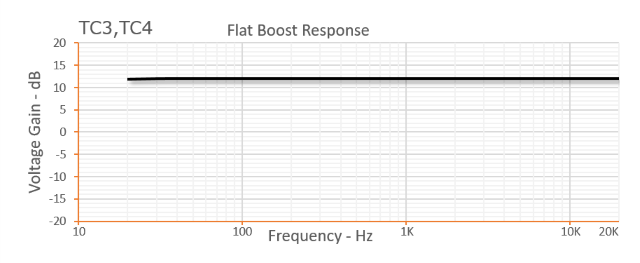

TC3 & TC4

  • 12dB (4x) Gain
  • Input Impedance: 400KΩ

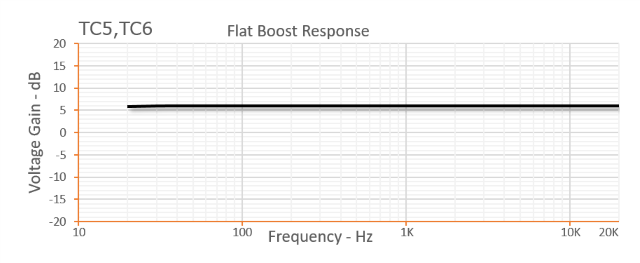

TC5 & TC6

  • 6dB (2x) Gain
  • Input Impedance: 500KΩ
