250K Premium Stack – 250K-30A-DC-KP

250K Premium Pot, 30% Audio Taper, Dual Concentric, 19mm Body, 6mm Spline/8mm Slot Shaft (Vol/Vol Stack or Vol/Tone Stack)

30% Audio Taper (30A) is ideal for Passive Volume. It is a little more linear than a standard 15A taper. 15A taper is standard as a compromise so the same value can be used for volume and tone in cost optimized instruments. For maximum performance, a 30A taper is used for volume with a 10A taper used for passive tone. This stack pot can be used as a Volume and Passive Tone with a bit less control at lower tone cut positions.

Standard 19mm “mini” body dual concentric.

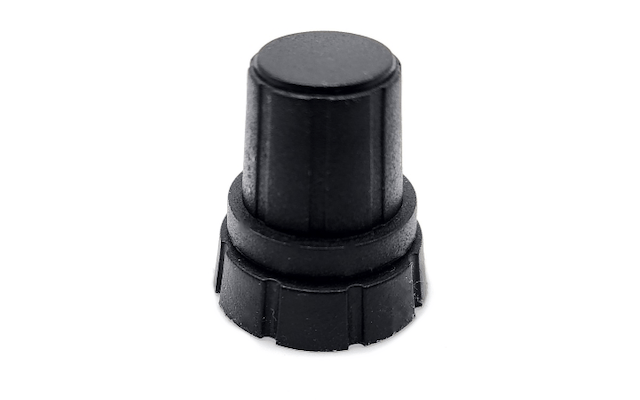

6mm Spline Shaft is the most flexible type because can be used with a push-on plastic knob or with a sleeve with knobs for 1/4″ solid shaft. The outer sleeve is 8mm slotted for metal or plastic ring knobs.
