1C

B1-1C

Imbalanced Coils Humbucker – 1C

The original Bartolini humbucker with imbalanced coils for a voice between single and dual coil

$180.00

Availability: Made to Order - Long Lead-time

Series: Original Humbuckers

Application: Ring-Mount Guitar Humbucker Shapes

Designed in the mid ‘70s, the 1C is our first dual coil humbucker. It has unequal windings between the coils with very warm tone, excellent treble response and very low noise and hum. The aperture is 40% wider than conventional humbuckers for warm, full lows. The unequal coil design provides more clarity in dual coil modes, and more tonal differences in single coil modes. It can be wired in series, parallel, single coils, or out-of-phase.
The 1C works equally well as a neck or bridge humbucker and is often installed as pairs with the neck pickup wired in parallel and the bridge pickup wired in series. They are available in black and include #4-40 mounting screws for rectangular versions (Bartolini #1 Shell shape).
1C Humbuckers are also now available in b-one traditional rounded-corner shape for pickguard and body-mount installations with your standard #3-48 screws.
Mounting hardware is not included – be sure to order what you need for your particular guitar.

Availability: Made to Order - Long Lead-time

Ordering Details

ModelDescriptionUPCPrice
1C-BKGuitar Humbucker, Dual Coil, Bridge Position, Black682384500262$180
B1-1C-BKGuitar Humbucker, Dual Coil, Bridge Position, B1 Collection, Black682384507216$180

Ordering Details

ModelUPCPrice
1C-BK682384500262$180
Guitar Humbucker, Dual Coil, Bridge Position, Black
B1-1C-BK682384507216$180
Guitar Humbucker, Dual Coil, Bridge Position, B1 Collection, Black

1C Technical Details

Coil Structure:
Dual Parallel Humbucking
Cable Type:
4-Conductor Cable with shield and bare drain
Magnetic Circuit:
Carbon steel and brass powered by ceramic (ferrite) magnets
projected for asymmetric field
Neck coil South and Bridge coil North

1C Coil Specs

  • DC Resistance: ~4KΩ each coil
  • Resonant Frequency: ~4.4KHz
  • Sensing Width: 2.01" [51mm] Max

Shape Details

See other Ring-Mount Guitar Humbucker Shapes

Humbucker

  • 2.76" [70.1mm] Long,
    1.53" [38.9mm] Wide,
    0.67-0.77" [17-19.6mm] Thick + 0.15" [3.8mm] Cable
  • Brass bracket with 4-40 tapped holes - Black philips screws provided

B1-Humbucker

  • 2.75" [69.9mm] Long,
    1.52" [38.6mm] Wide,
    0.7-0.8" [17.8-20.3mm] Thick + 0.15" [3.8mm] Cable
  • Brass bracket with 3-48 tapped holes - Screws not provided

Artists:

Some other options:

  • Vintage PBF Humbuckers – PBF-49 and PBF-51

    $165.00 – $180.00Price range: $165.00 through $180.00

  • 2 Band NTBT Preamp, 4 Pots – HR-4.5

    $210.00 – $225.00Price range: $210.00 through $225.00

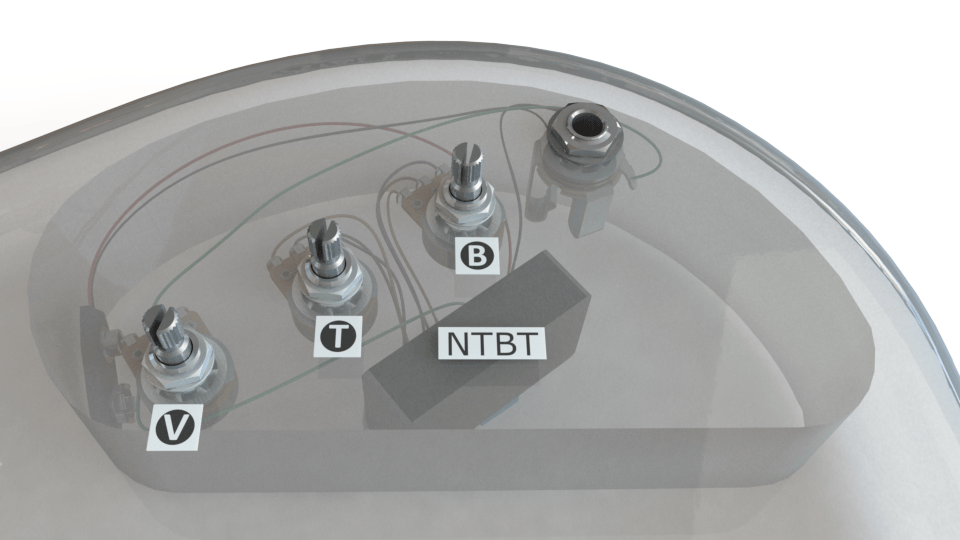

  • 2 Band NTBT Preamp, 3 Pots – HR-2.3
