Pre-Wired Harness –

NTBT-918 2-Band EQ

Wired with our NTBT 2-band pro-level pre-amp and premium audio-quality pots and switches, you’ll have smooth control and be ready for years of rugged use. We include battery clips and an output jack for quick installation. The layouts below are available in active-only or active/passive versions with a push-pull switch on the volume pot so you can quickly pull to bypass the pre-amp completely. Choose a layout for more details.

Wiring Diagram PDF

2 Pots: (Volume) (Treble/Bass Stack) - HR-2.2 - Active or Active/Passive
$200.00 – $220.00Price range: $200.00 through $220.00
Made to Order - Long Lead-time
See all 2 Knob Control Layout -- Control Set 2.2
3 Pots: (Volume) (Treble) (Bass) - HR-2.3 - Active or Active/Passive
$195.00 – $210.00Price range: $195.00 through $210.00
Made to Order - Long Lead-time
See all 3 Knob Control Layout -- Control Set 2.3
3 Pots: (Neck Volume) (Bridge Volume) (Treble/Bass Stack) - HR-3.2 - Active or Active/Passive
$220.00 – $240.00Price range: $220.00 through $240.00
Active/Passive: Normally Stocked – Active-Only: Made-to-Order
See all 3 Knob Control Layout -- Control Set 3.2
3 Pots: (Volume) (Blend) (Treble/Bass Stack) - HR-3.3 - Active or Active/Passive
$220.00 – $240.00Price range: $220.00 through $240.00
Active/Passive: Normally Stocked – Active-Only: Made-to-Order
See all 3 Knob Control Layout -- Control Set 3.3
4 Pots Inline: (Neck Volume) (Bridge Volume) (Treble) (Bass) - HR-4.2J - Active or Active/Passive
$200.00 – $210.00Price range: $200.00 through $210.00
Active/Passive: Normally Stocked – Active-Only: Made-to-Order
See all 4 Inline Knob Control Layout -- Control Set 4.2
4 Pots Inline: (Volume) (Blend) (Treble) (Bass) - HR-4.5J - Active or Active/Passive
$210.00 – $225.00Price range: $210.00 through $225.00
Active/Passive: Normally Stocked – Active-Only: Made-to-Order
See all 4 Inline Knob Control Layout -- Control Set 4.5
4 Pots: (Neck Volume) (Bridge Volume) (Treble) (Bass) - HR-4.2 - Active or Active/Passive
$200.00 – $210.00Price range: $200.00 through $210.00
Active/Passive: Normally Stocked – Active-Only: Made-to-Order
See all 4 Knob Control Layout -- Control Set 4.2
4 Pots: (Volume) (Blend) (Treble) (Bass) - HR-4.5 - Active or Active/Passive
$210.00 – $225.00Price range: $210.00 through $225.00
Active/Passive: Normally Stocked – Active-Only: Made-to-Order
See all 4 Knob Control Layout -- Control Set 4.5

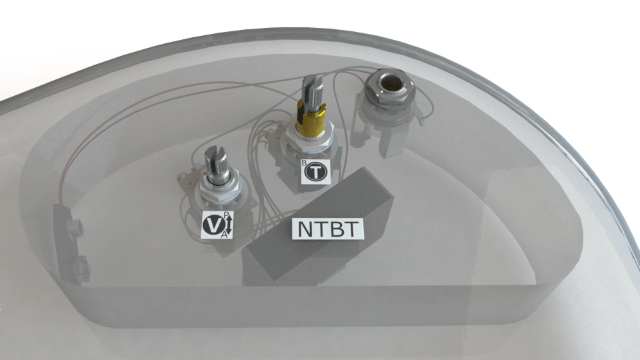

Special Ibanez GWB Upgrade 2 Pots: (Volume) (Treble/Bass Stack) - HR-2.2-IWB20
$250.00
Bartolini Store - Stocked
See all 2 Knob Control Layout -- Control Set 2.2
